Powerwall CALB Lifepo4 Battery
CALB CA100 lifepo4 prismatic cells 3.2v for powerwall A Grade
Storage of CALB CA100 lifepo4 prismatic cells
CA100 Lithium iron phosphate cell should be stored (more than 1 month) in a clear, dry and ventilated room under ambient temperature of -20℃~25℃, and it should be kept away from caustic material, fire source and heat source. Do not invert battery during storage; and avoid mechanical shock and stress.
If the batteries kept for a long time, it should be charged and discharged at the standard model every six months. Store the battery in the state of 10%~30% SOC (voltage scope: 3.215V~3.305V).
Products Description
| No | Item | Parameter Specification |
| 1 | Battery Module | CA100 |
| 2 | Nominal Capacity | 100Ah |
| 3 | Nominal Voltage | 3.2V |
| 4 | Internal Resistance | ≤ 0.9mΩ |
| 5 | Charging (CC-CV) | Max Charge Current | 100A (1C) |
| Charging Upper Limit Voltage | 3.65V |
| 6 | Discharging | Max Continuous Discharge Current | 200A(2C) |
| Discharging Cut-off Voltage | 2.5V |
| 7 | Recommended SOC Usage Window | SOC: 10%~90% |
| 8 | Operation Thermal Ambient | Charging | 0°C ~ 45°C |
| | Discharging | -20°C ~ 55°C |
| 9 | Storage Thermal Ambient | Short-term (within 1 month) | -20°C ~ 45°C |
| | Long term (within 1 year) | -20°C ~ 20°C |
| 10 | Storage Humidity | <70% |
| 11 | Battery Weight | 4Kg±10g |
| 12 | Battery Dimension | 216*142*67mm |
| 13 | Shell Material |
Model: CA100; Size: 142*67*215.5mm; Shell material: plastic
A typical curve of single cell discharged at room temperature:

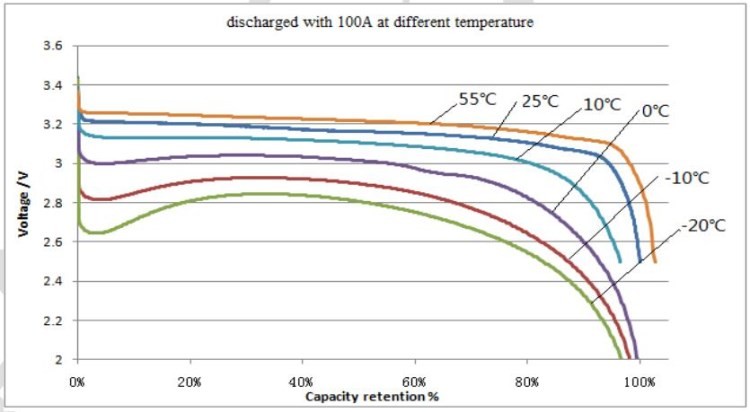

A typical curve of single cell discharged with 100A at different temperature:
2000 times cycling curve of single cell:
Note
1.This item is 100Ah CALB item,100% Original Grade A Brand NEW.The true capacity is 110Ah-120Ah.
2.The price come with original Busbars and Bolts,One Battery will come with one pcs busbar and 2pcs bolt(e.g.,If buy 4pcs battery,we will send 4pcs cells with 4pcs busbars and 8pcs bolts)If need more please contact us online.Thank you!
3.The busbars size:88*22.2*2.5mm ; Screw size:M8
4.Test report available,and number of lable is consecutive.
Application
Product Features
* Genuine Grade A lithium battery cells, brand new
* Light weight and high performance
* Small internal resistance
* High energy density, low self-discharge
* Pollution free, long cycle life
* No memory effect
* Existing stock for short delivery time.
* OEM orders are available (battery pack, battery with spot welding ect.)
